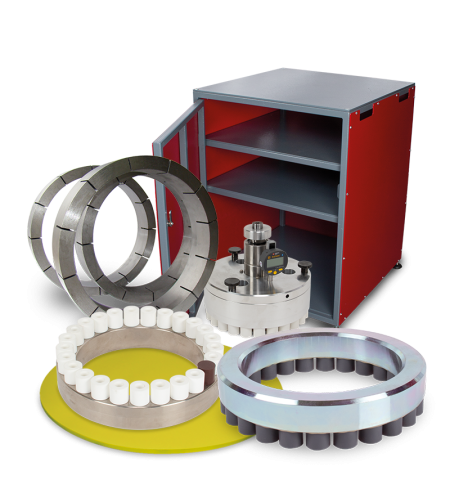

Accessories for lapping and polishing machines

For the range of lapping and polishing machines

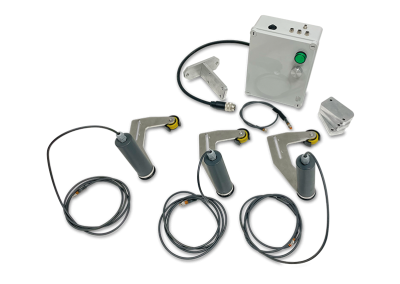

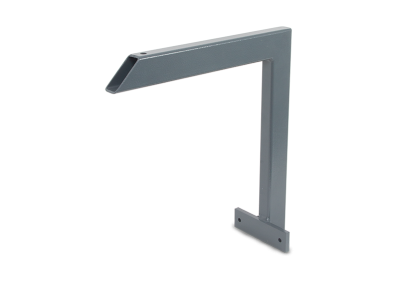

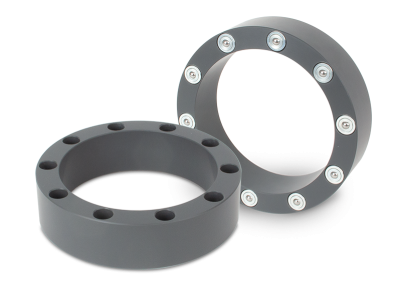

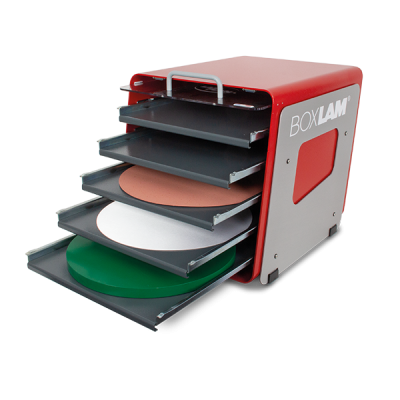

Accessories for lapping and polishing machines
stock removal measurement

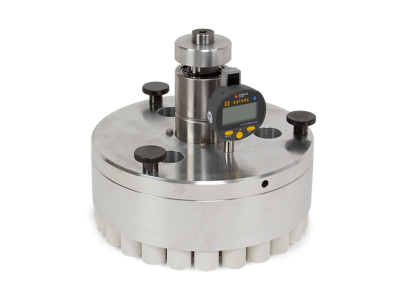

MESUREO: stock removal measurement

10 84003 00
For machine M.M.8400

System permitting to obtain a flat surface within a micron, combined with a high quality parallelism between the lapped face and a reference.

This device is constituted of a perfectly flat pressure disc translating on a vertical axis. Therefore, it assures a support on the opposite face of the surface to be lapped.

The guidance of this support plate is realised by a high quality linear ball bearings. Therefore, at the end of the lapping cycle the parts contained in this tool will have a parallelism inferior to 5 microns. The support is ceramic coated, assuring a long life service to this reference surface with no risk of metallic pollution.

Finally, these tools are equipped with a wireless sensor, allowing to visualise the stock removal in real-time on a computer. The target dimension can be set. Thanks to an intuitive colour display, the operator can rapidly visualise on the computer, when the parts are in the thickness tolerance defined by your specifications.

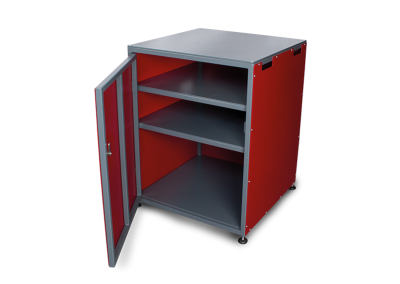

Support cabinet

10 M8400 00
For machine M.M.8400

Height : 73 cm
1 door
3 compartments

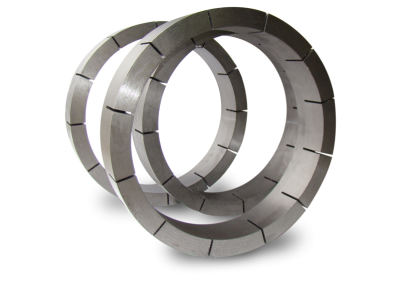

Cast iron conditioning rings

We carefully select special high quality cast iron for optimum, durable results.
Suitable for all lapping machines, whatever the brand or size.
Available from stock or produced to order.



 Compatible machines
 Ø rings Ø in mm Height Weight Ref.
    Ext. Int. mm kg
  14″ 166 130 45,5 2,28 U166 A0355
MM 8400 (Ø 381 mm) 15″ 178 140 45,5 2,97 U178 A0381
MM 9480 S (Ø 480 mm) 19″ 218 182 45,5 4,20 U218 A0480
MM 8600 (Ø 610 mm) 24″ 286 248 70 7,84 U286 A0610
MM 9700 (Ø 700 mm) 27″ 315 275 70 9,24 U315 A0711
  36″ 419 368 100 20,80 U419 A0914
MM 9100 (Ø 1 000 mm) 40″ 457 406 100 24 U457 A1000
MM 9120 (Ø 1 200 mm) 48″ 545 480 100 36,60 U545 A1219
MM 9120 (Ø 1 200 mm) (4x) 48” 510 432 125 41 U510 A1219
MM 9150 (Ø 1 500 mm) 59″ 685 605 125 55 U685 A1500

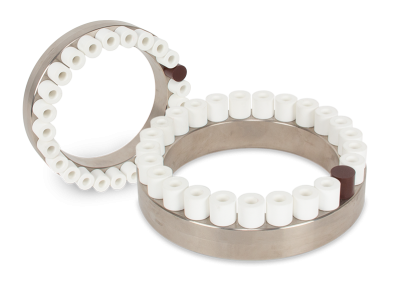

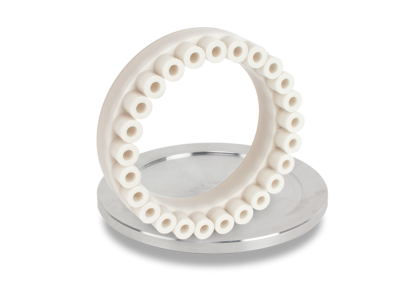

Ceramic conditioning rings with SPYLAP®

Prevent mechanical distortion problems. The ceramic rings enable you to preserve the flatness of the plate, to manage its heating, as well as limiting contamination thanks to the absence of graphite.

The SPYLAP® sensor enables the user to visually prevent a significant mechanical distortion of the lapping (or polishing) support and of the part to be lapped. The SPYLAP® permanently monitors the temperature of the support and changes from black to red at a precisely predefined temperature.

lamplan rodagepolissage accessoiresmachines anneauxceramique2

The SPYLAP® sensor enables the user to visually prevent a significant mechanical distortion of the lapping (or polishing) support and of the part to be lapped. The SPYLAP® permanently monitors the temperature of the support and changes from black to red at a precisely predefined temperature.



 Compatible machines
 Ø rings Ø in mm Height
 Weight Ref.
    Ext. Int. mm kg
  12” 140 106 41 0,83 08 83062 10
MM 8400 (Ø 381 mm) 15″ 182 140 41  2,42 08 83562 10
MM 9480 S (Ø 480 mm) 19″ 224 182 43,5  3,20 08 94803 00
MM 8600 (Ø 610 mm) 24″ 290 248 46 4,75 08 86562 10
MM 9700 (Ø 700 mm) 27″ 317 275 51  5,83 08 87562 10
MM 9100 (Ø 1 000 mm) 40″ 450 406 81  15,60 08 81062 10
MM 9120 (Ø 1 200 mm) 48” 544 480 81  24,31 08 81262 10

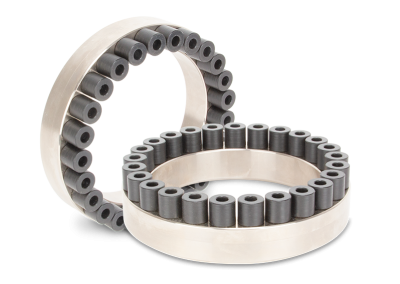

Plastic rings

 Compatible machines
 Ø rings Ø in mm Height Weight Ref.
    Ext. Int. mm kg
  12” 140 106 41 0,73 08 83012 00
MM 8400 (Ø 381 mm) 15″ 182 140 41 2,13 08 83512 00
MM 9480 S (Ø 480 mm) 19″ 224 183 43,5 2,84 09 94803 20
MM 8600 (Ø 610 mm) 24″ 290 248 46 4,26 08 86512 00
MM 9700 (Ø 700 mm)  27″ 317 275 51 5,32 08 87512 00
MM 9100 (Ø 1 000 mm) 40″ 450 406 81 14,75 08 87012 00
MM 9120 (Ø 1 200 mm) 48” 544 480 81 22 08 87262 00

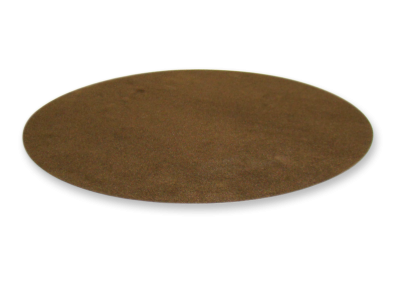

Protection discs 881 series

Fig

 Designation
 Qty. Ø in mm Ref.
Protection discs
Thickness 1.4 mm		 10 138 08 83501 00
10 180 08 94803 10
10 245 08 86001 00
10 275 08 87501 00
10 406 08 81001 00
10 480 08 81201 00

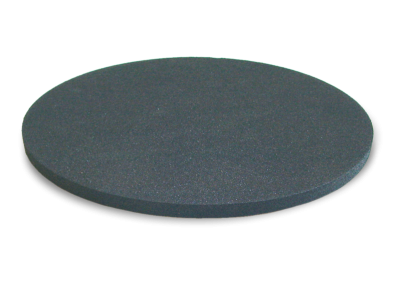

Compensation discs 883 series

Fig

 Designation
 Qty. Ø in mm Ref.
Compensation discs 3 138 08 83503 00
3 180 08 94803 10
3 245 08 86003 00
3 275 08 87503 00
3 406 08 81003 00
3 480 08 81203 00

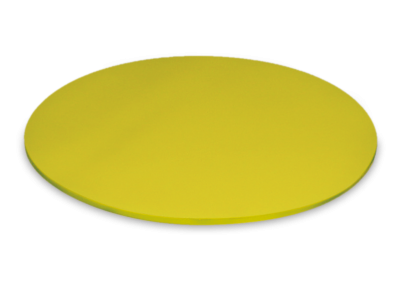

Holder discs 885 series

Anti-slipping holder disc for parts with a small, thickness 4 mm.

Fig

 Designation
 Qty. Ø in mm Ref.
Holder discs 3 138 08 83505 00
3 245 08 86005 00
3 275 08 87505 00
3 406 08 81005 00
3 480 08 81205 00
