Plate maintenance and integrated reconditioning and grooving system

DIABLOC system

diabloc system and refills

DIABLOC and refills

Plate maintenance and integrated reconditioning and grooving system

The reconditioning of composite plates can be carried out in different ways. The DIABLOC is a self-adhesive disc which has a series of diamond pellets.

It is stuck onto a stable and lapped aluminium support. It allows the reconditioning of NEW LAM® M’M’, EVOLAM ULTIMATE and 2000 series plates.

It corrects distortion and surface faults (glazing, scratching) of your plates. The new VIOLET and BLACK DIABLOCS are more aggressive, enabling you to accelerate the reconditioning phase notably on large diameter plates.

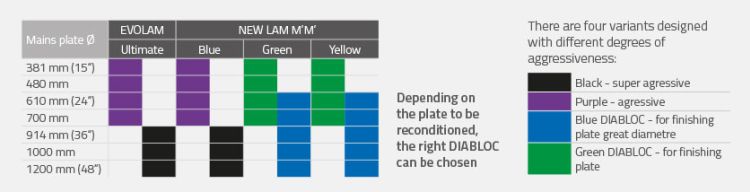

Implementation

lamplan rodagepolissage accessoires diablocfig

Download data sheet

DIABLOC black

Super aggressive – For composite rough lapping plates in great diametre.
 1 holder + 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 00907 60
Ø 480 mm   224 08 00907 64
Ø 610 mm   286 08 00907 70
Ø 700 mm   315 08 00907 90
Ø 914 mm   419 08 00907 80
Ø 1000 mm   451 08 00907 180
Ø 1200 mm 4 rings   500 08 00907 500
Ø 1200 mm   545 08 00907 00

Refills for DIABLOC black

Super aggressive – For composite rough lapping plates in great diametre.
 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 01907 60
Ø 480 mm   224 08 01907 64
Ø 610 mm   286 08 01907 70
Ø 700 mm   315 08 01907 90
Ø 914 mm   419 08 01907 80
Ø 1000 mm   451 08 01907 180
Ø 1200 mm 4 rings   500 08 01907 500
Ø 1200 mm   545 08 01907 00

DIABLOC purple

Aggressive – For composite rough lapping plates.
 1 holder + 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 00906 60
Ø 480 mm   224 08 00906 64
Ø 610 mm   286 08 00906 70
Ø 700 mm   315 08 00906 90
Ø 914 mm   419 08 00906 80
Ø 1000 mm   451 08 00906 180
Ø 1200 mm 4 rings   500 08 00906 500
Ø 1200 mm   545 08 00906 00
Ø 1500 mm   – Disponibile su richiesta

Refills for DIABLOC purple

Aggressive – For composite rough lapping plates.
 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 01906 60
Ø 480 mm   224 08 01906 64
Ø 610 mm   286 08 01906 70
Ø 700 mm   315 08 01906 90
Ø 914 mm   419 08 01906 80
Ø 1000 mm   451 08 01906 180
Ø 1200 mm 4 rings   500 08 01906 500
Ø 1200 mm   545 08 01906 00
Ø 1500 mm   – Available on request

DIABLOC blue

For fine and super finish composite lapping plates lapping plates in great diametre.
 1 holder + 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 00900 60
Ø 480 mm   224 08 00900 64
Ø 610 mm   286 08 00900 70
Ø 700 mm   315 08 00900 90
Ø 914 mm   419 08 00900 80
Ø 1000 mm   451 08 00900 180
Ø 1200 mm 4 rings   500 08 00900 500
Ø 1200 mm   545 08 00900 00

Refills for DIABLOC blue

For fine and super finish composite lapping plates lapping plates in great diametre.
 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 01900 60
Ø 480 mm   224 08 01900 64
Ø 610 mm   286 08 01900 70
Ø 700 mm   315 08 01900 90
Ø 914 mm   419 08 01900 80
Ø 1000 mm   451 08 01900 180
Ø 1200 mm 4 rings   500 08 01900 500
Ø 1200 mm   545 08 01900 00

DIABLOC green

For fine and super finish composite lapping plates.
 1 holder + 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 00901 60
Ø 480 mm   224 08 00901 64
Ø 610 mm   286 08 00901 70
Ø 700 mm   315 08 00901 90
Ø 914 mm   419 08 00901 80
Ø 1000 mm   451 08 00901 180
Ø 1200 mm 4 rings   500 08 00901 500
Ø 1200 mm   545 08 00901 00
Ø 1500 mm   – Available on request

Refills for DIABLOC green

For fine and super finish composite lapping plates.
 1 disc

 For composite rough lapping plate
 Color Ø mm
 Ref.
Ø 381 mm   178 08 01901 60
Ø 480 mm   224 08 01901 64
Ø 610 mm   286 08 01901 70
Ø 700 mm   315 08 01901 90
Ø 914 mm   419 08 01901 80
Ø 1000 mm   451 08 01901 180
Ø 1200 mm 4 rings   500 08 01901 500
Ø 1200 mm   545 08 01901 00
Ø 1500 mm   – Available on request
