Lapping/polishing machine for moderate production of parts : Ø 5 to 210 mm

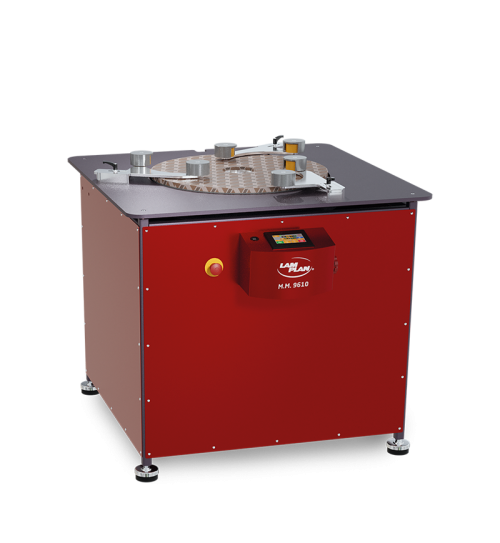

M.M.9610 Lam Plan polishing machine
Plate Ø 610 mm

It will enable you to achieve all your objectives in terms of geometry and surface finish with an interesting capacity thanks to its 610 mm diameter table.

Écran tactile 4,3 pouces

• Ergonomically improved controls (better visibility of screen in working position),
• Programme import/export on USB key,
• Memory for 30 recipes,
• Improved connectivity, ability to control 3 dispensers, remote maintenance facility.

INTRODUCTION

M.M.9610

BASIC SERIES

The M.M.9610 is a very competitive machine, suitable for maintenance work as well as occasional or moderate production.

  • Ø plate
    610 mm
  • Plate rotation speed
    20 à 90 rpm
  • Ø Inner ring
    248 mm
  • Weight
    280 kg

The M.M.9610 incorporates the technical choices of the M.M.9400.
It will enable you to achieve all your objectives in terms of geometry and surface finish with an interesting capacity thanks to its 610 mm diameter table. The M.M.9610 is compatible with all lapping and polishing supports as well as with the LAM PLAN range of dispensing units.

The M.M.96100 is a solution for integrating a means of finishing flat surfaces into your workshop at a contained price. The machine’s compact dimensions and ergonomic controls are still there, but it has become more rigid and even more versatile.

It can be fitted with a wide range of accessories to adapt your equipment to your needs. Integrated control of LAM PLAN feeders, ​recipe memory and motorised drive are just some of the possibilities.

Versatility

The M.M.9400 can be fitted with cast iron, DIALAM®, NEW LAM® M’M’ or FAS® platens, enabling you to achieve all types of surface finish defined in your specifications (e.g. honing, thickness adjustment, honing, polishing, etc.).

It is also perfectly suited to your maintenance needs on all sealing parts (e.g. lapping of flaps, safety valves or small mechanical seals).

New configuration and improvements

  • More rigid welded tubular steel chassis, stainless steel tank,
  • Ergonomically improved controls (better visibility of screen in working position),
  • 4.3’ touch screen,
  • Programme import/export on USB key,
  • Multiple attachment points for accessories, such as dosing devices, jib, etc,
  • Memory for 30 recipes,
  • Mobile water inlet controlled by solenoid valve,
  • Improved connectivity, ability to control 3 dispensers, remote maintenance facility.
VIDEO & VISUALS

Design and advanced technology

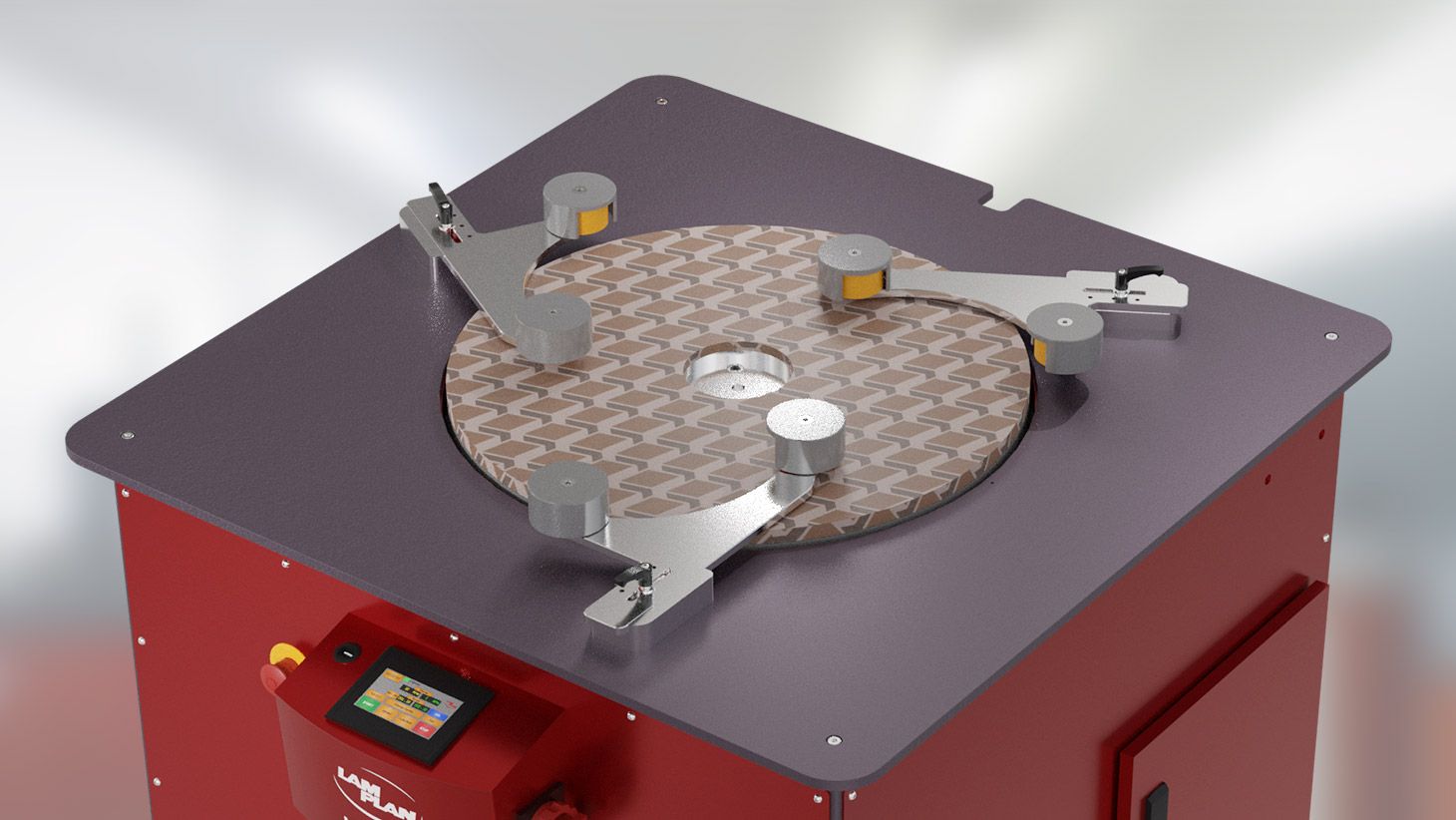

Machine à roder mm9610 lam plan rodeuse

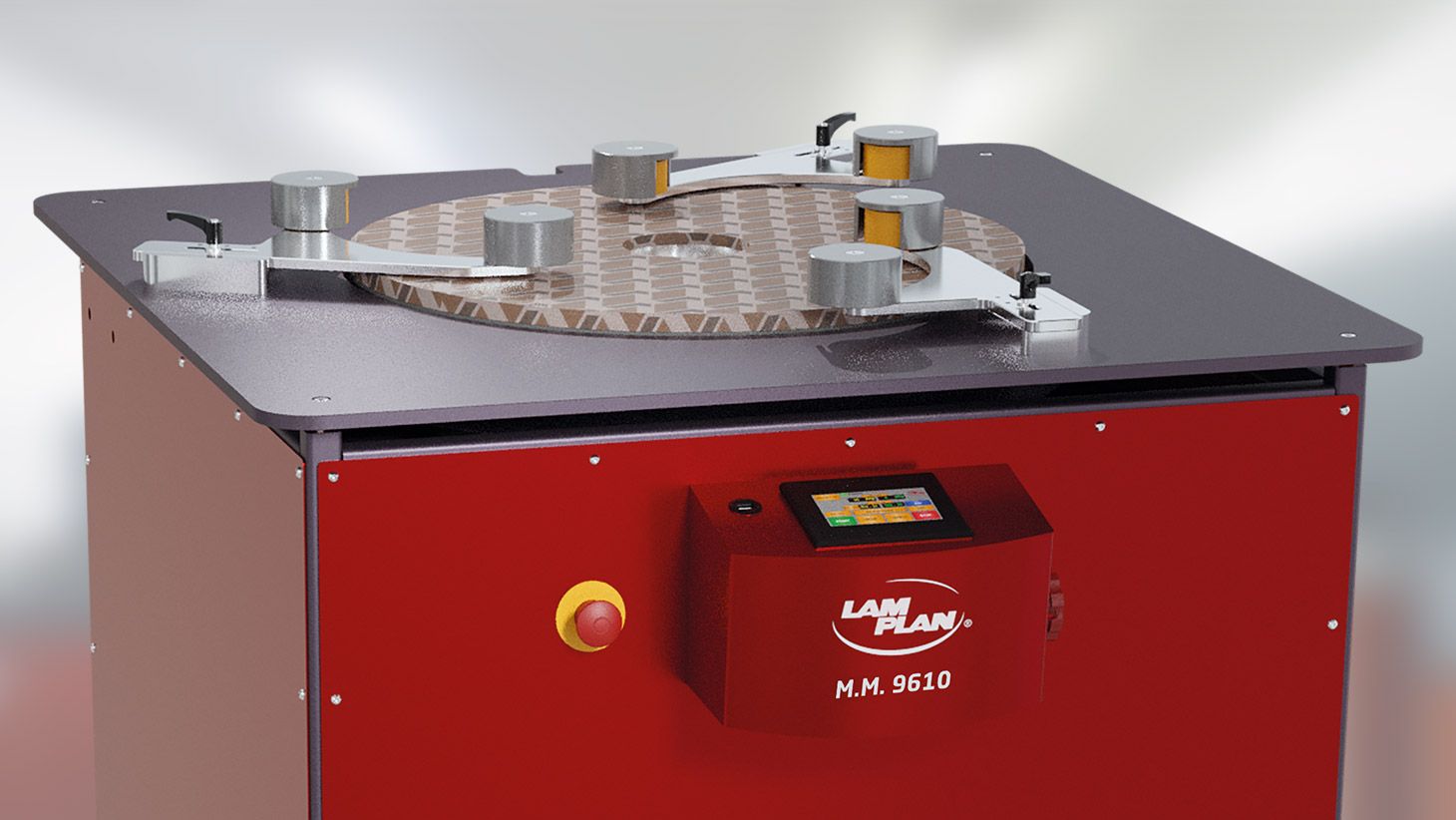

Machine à polir mm9610 lam plan rodeuse
    Non-contractual visuals
    IN DETAIL

    Technical characteristics and equipment

    Downloads

    Technical data M.M.9610

    Plate Ø
    610 mm
    Inner ring Ø
    248 mm
    Capacity per ring
    1 part Ø 210 mm or 320 parts Ø 5 mm
    Number of rings
    3
    Electric power supply
    230 V single-phase
    Motor Power

    1.5 kW

    Control

    Touch screen 4,3 inches

    Plate rotation speed

    From 20 to 90 rpm

    Dim. (W x H x D)

    1020 x 1010 x 1000 mm

    Weight (without plate)

    280 kg

    Abrasive distribution system

    Optional – see table

    Reference

    10 9610E 00

    ACCESSORIES & OPTIONS

    Available accessories

    Potence E pour machines à roder
    E stem
    109 400PA 00
    Accessory support
    Micrometric gauge
    Micrometric gauge
    08 00892 00

    For a fast and precise check of your lapping plates, with a direct reading of the measurements. Precision: 1 µm.

    The transport and storage case includes:

    • 1 marble, accuracy : 0,8 µm.
    • 1 gauge made of stabilised aluminium or stainless steel for machines Ø 200 to 600 mm.
    • 1 micron comparator.
    • 1 user guide with charts and mapping formulas.
    Temperature control system P803
    Temperature control system P803
    10 80003 90

    Flat lapping is based on the laws of mechanics and physics where a constant temperature is essential.

    To control plate flatness, temperature must be regulated. The LAM PLAN P803 temperature regulation unit is reversable. It can also raise the plate temperature before use. This enables lapping to start in optimum geometric conditions in any work environment.

    The P803 regulator is designed to maintain the temperature between 2 set values. It is an autonomous machine which has its own command interface.

    Doseur distributeur 709 - Péristaltique
    Dedicated dosing units

    Peristaltic and venturi dosing units 709, 710 and 719

    This series of dispensers is fitted to LAM PLAN lapping machines. They are controlled from the machine interface and are fully integrated into the programming cycles. The different models can be used to dispense all types of products.

    Peristaltic and vortex mixing dispensers 8017, 8003 and 8007

    These dispensing systems are suitable for any type of abrasive immersed in a liquid. They solve the problem of settling and guarantee regular and guarantee regular, repeatable results.
