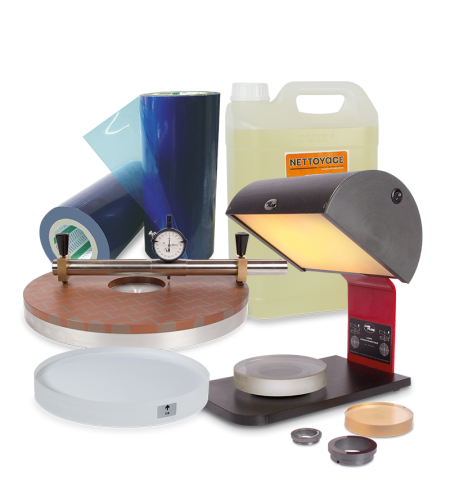

Control, cleaning and protective accessories

Rulers, lamps, gauges, washing, cleaning and protective products

Micrometric gauges

For a fast and precise check of your lapping plates, with a direct reading of the measurements.
Precision: 1 µm. Each set includes:

Each set includes:

1 marble, accuracy : 0,8 µm.
1 gauge made of stabilised aluminium or stainless steel for machines Ø 200 to 600 mm.
1 micron comparator.
1 transport and storage case.
1 user guide with charts and mapping formulas.

Micrometric gauge for machine Ø 200 to 600 mm

Designation	Qty	Ref.
For machine Ø 200 to 400 mm	1	08 00898 00
For machine Ø 400 to 600 mm	1	08 00899 10

Micrometric gauge for machine Ø 610 à 1500 mm

Designation	Qty	Ref.
For machine Ø 610 mm	1	08 00892 00
For machine Ø 700 mm	1	08 00894 00
For machine Ø 1000 mm	1	08 00893 00
For machine Ø 1200 mm	1	08 00895 00
For machine Ø 1500 mm	1	08 00897 00

Micrometric gauge for double-sided machine M.M.2380

Designation	Qty	Ref.
For machine M.M.2380	1	08 00898 10

Monochromatic lamps

The use of a monochromatic lamp and an optical flatness gauge allow a simple reading of the geometry of your parts for their flatness check. The light from the low pressure sodium vapour bulb has a specific wavelength compatible with LAM PLAN’s optical gauge.

Removable monochromatic lamp

Control capacity: Gauge Ø 150 mm maximum
Dimension (W x D x H): 280 x 330 x 390 mm

Designation	Qty	Ref.
Removable monochromatic lamp with Ø 200 mm mirror	1	08 00801 00
Spare bulb 18 w	1	08 00801 90

Monochromatic lamp MAX

Control capacity: Gauge Ø 300 mm maximum
Dimension (W x D x H): 380 x 330 x 390 mm

Designation	Qty	Ref.
Monochromatic lamp MAX	1	08 00803 00
Spare bulb 36 w	1	08 00803 10

Optical gauges

Quartz optical gauges

Our new range of quartz optical gauge is also available on demand with boring or in a rectangular shape.

Ø (mm)	Thickness (mm)	Number of faces	Accuracy	Ref.
50	10	1	Lambda/10	08 01805 00
75	15	1	Lambda/10	08 01807 00
100	17	1	Lambda/10	08 01810 00
125	20	1	Lambda/10	08 01812 00
150	25	1	Lambda/10	08 01814 00
200	30	1	Lambda/10	08 13820 00
250	35	1	Lambda/10	08 01825 00
300	40	1	Lambda/10	08 01830 00
50	10	2	Lambda/10	08 00805 00
75	15	2	Lambda/10	08 00807 00
100	17	2	Lambda/10	08 00810 00
125	20	2	Lambda/10	08 00812 00
150	25	2	Lambda/10	08 00814 00
200	30	2	Lambda/10	08 00820 00
250	35	2	Lambda/10	08 00825 00
300	40	2	Lambda/10	08 02830 00

Cleaning products

Detergent 742

Concentrated detergent in aqueous phase used to degrease and clean parts after lapping or polishing cycles. This detergent with a high anticorrosion power is an excellent alternative to conventional cleaning solvents. Non inflammable, it is ideal for cleaning all types of materials (steels, cast irons, aluminium, etc.).

Dilute 2 to 5% with water for use in ultrasonic cleaning tanks (40 to 55°C) or 7 to 20% with water for fountain based cleanings.

Designation	Qty	Ref.
Detergent 742	5 litres	08 01742 10
	30 litres	08 01742 30

Detergent 743

Aqueous detergent specifically adapted for the cleaning of ceramics, refractory materials and glasses. Dilute 1 volume of detergent in 9 volumes of water.

Designation	Qty	Ref.
Detergent 743	5 litres	08 01743 10

Stanol barrel

Solvent for washing stand.

Designation	Qty	Ref.
Fût stanol	60 litres	08 00614 00

Protective products

PROTECLAM fluid

Liquid corrosion inhibitor used to protect the surface of metal parts after lapping and polishing operations. The product is effective in protecting ferrous metals ferrous metals, copper, aluminium and their respective alloys. Ready-to-use product.
