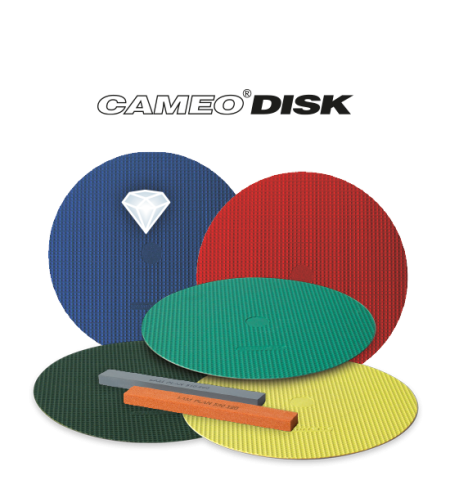

Grinding and pre-polishing discs CAMEO®DISK Platinium

The CAMEO®DISK Platinium are diamond discs (fixed abrasive) which are ideal for a rapid grinding of metallographic samples.

cameo disk

CAMEO®DISK Platinium in action

Watch the video to see how to dress the CAMEO®DISK Platinium with the right stone.

Cameo Disk
Grinding and polishing are key steps in the preparation of a metallographic sample. It is the quality of these steps which will condition and optimise the rest of the process.
At the end of the grinding step, the sample’s aspect must be uniform and regular without altering the inherent flatness and the material.
The CAMEO®DISK’s performances in terms of stock removal reduce the work time on the part, thereby guaranteeing the sample’s inherent flatness, an indispensable condition to succeed with your metallographic analyse.



A patented honeycomb cell structure

Stock removal

The CAMEO®DISK honeycomb cell structure allows decreasing the surface in contact with the sample to be polished. The pressure required to grind the sample is much less than that generally applied during the use of a solid disc. The equipment is less stressed and the risks of tearing out the grinding disc are significantly reduced.

Fig 1 Fig 1

Reproducibility

The profile of the honeycomb cells was specially designed to optimise the circulation of the lubricant from one cavity to another.

The abrasion residues are evacuated, guaranteeing a constant abrasive power and therefore a regularity of the result throughout the grinding and polishing steps.

lamplan polissage supportsdressage touchlamfig01 en

Preparation quality

For a process usually performed with several SiC abrasive papers, LAM PLAN proposes you a single, reusable disc: the CAMEO®DISK. Contrary to SiC abrasive papers, CAMEO®DISK constant abrasion prevents the formation of deep disturbed layers during the first few seconds of grinding.

lamplan polissage supportsdressage touchlamfig01 en

CAMEO®Disk Platinium

The CAMEO®DISK Platinium are diamond discs (fixed abrasive) which are ideal for a rapid grinding of metallographic samples.

Fig 5

The use of diamond integrated in the CAMEO®DISK Platinium honeycomb cell structure allows preserving a constant stock removal throughout the operation, which prevents the appearance of edge drops, including on samples of heterogeneous hardnesses.

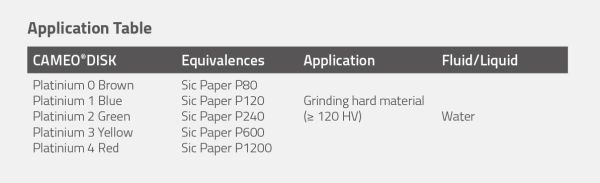

CAMEO®Disk Platinium 0 Brun

Equivalence: Sic paper P80.
Application: Grinding hard material (≥ 120 HV).
Fluid/liquid: water.

 Boxes of 1 piece + 1 dressing stone Self-adhesive Magnetic
 Ø in mm
 Ref. Ref.
200 09 CA170 20 09 CA570 20
250 09 CA170 40 09 CA570 40
300 09 CA170 50 09 CA570 50

CAMEO®Disk Platinium 1 Blue

Equivalence: Sic paper P120.
Application: Grinding hard material (≥ 120 HV).
Fluid/liquid: water.

 Boxes of 1 piece + 1 dressing stone Self-adhesive Magnetic
 Ø in mm
 Ref. Ref.
200 09 CA140 20 09 CA540 20
250 09 CA140 40 09 CA540 40
300 09 CA140 50 09 CA540 50

CAMEO®Disk Platinium 2 Green

Equivalence: Sic paper P240.
Application: Grinding hard material (≥ 120 HV).
Fluid/liquid: water.

 Boxes of 1 piece + 1 dressing stone Self-adhesive Magnetic
 Ø in mm
 Ref. Ref.
200 09 CA150 20 09 CA550 20
250 09 CA150 40 09 CA550 40
300 09 CA150 50 09 CA550 50

CAMEO®Disk Platinium 3 Yellow

Equivalence: Sic paper P600.
Application: Grinding hard material (≥ 120 HV).
Fluid/liquid: water.

 Boxes of 1 piece + 1 dressing stone Self-adhesive Magnetic
 Ø in mm
 Ref. Ref.
200 09 CA160 20 09 CA560 20
250 09 CA160 40 09 CA560 40
300 09 CA160 50 09 CA560 50

CAMEO®Disk Platinium 4 Red

Equivalence: Sic paper P1200.
Application: Grinding hard material (≥ 120 HV).
Fluid/liquid: water.

 Boxes of 1 piece + 1 dressing stone Self-adhesive Magnetic
 Ø in mm
 Ref. Ref.
200 09 CA180 20 09 CA580 20
250 09 CA180 40 09 CA580 40
300 09 CA180 50 09 CA580 50

Dressing tools

Abrasive stones for CAMEO®DISK Platinium

 2 pieces
 Types
Dim. (mm) Ref.
Grain 120 for Platinium 0 & 1 6 x 13 x 100 98 59121 00
Grain 400 for Platinium 2 6 x 13 x 100 98 59401 00
Grain 600 for Platinium 3 & 4 6 x 13 x 100 98 59601 00

Booster

Booster for CAMEO®DISK Platinium

Booster fluid is a new lubricant especially developed to be applied on the CAMEO®DISK Platinium during the polishing step.
Its specific formulation facilitates the use of the CAMEO®DISK Platinium 0, 1, 2, 3 and 4.

Ready-to-use, this new lubricant maintains the efficiency of the CAMEO®DISK constant in time and avoids the use of abrasive stone to regenerate the disc.

lamplan polissage fluidesetlubrifiants cameodiskplatiniumThe main advantages are:
  • Improves the efficiency of the CAMEO®DISK
  • Keeps the efficiency constant in time
  • Reduces water consumption
  • Universal use, can be used on all kind of material
  • Ready to use.

 Characteristics
Packaging
Ref.
Ready to use lubricant fluid 5 liters 07 BP030 40

Guidance

In order to guarantee constent results, the CAMEO®DISK have to be periodically dressed by adequate abrasive stones.
