precision sample holder for thin slides

“Developed with the collaboration of THE FRENCH NETWORK OF LITHOPREPARATORS“.

lam plan pe128

Technical characteristics
and equipment

The LAM PLAN PE128 specimen holder is used to hold several thin slides by vacuum suction during a lapping operation. This sample holder guarantees a high level of parallelism.

The precision and robustness of this device allow it to meet the specific demands of research laboratories as well as the constraints of production laboratories.

Adjustable thickness of the thin blades and automatic parallelism.

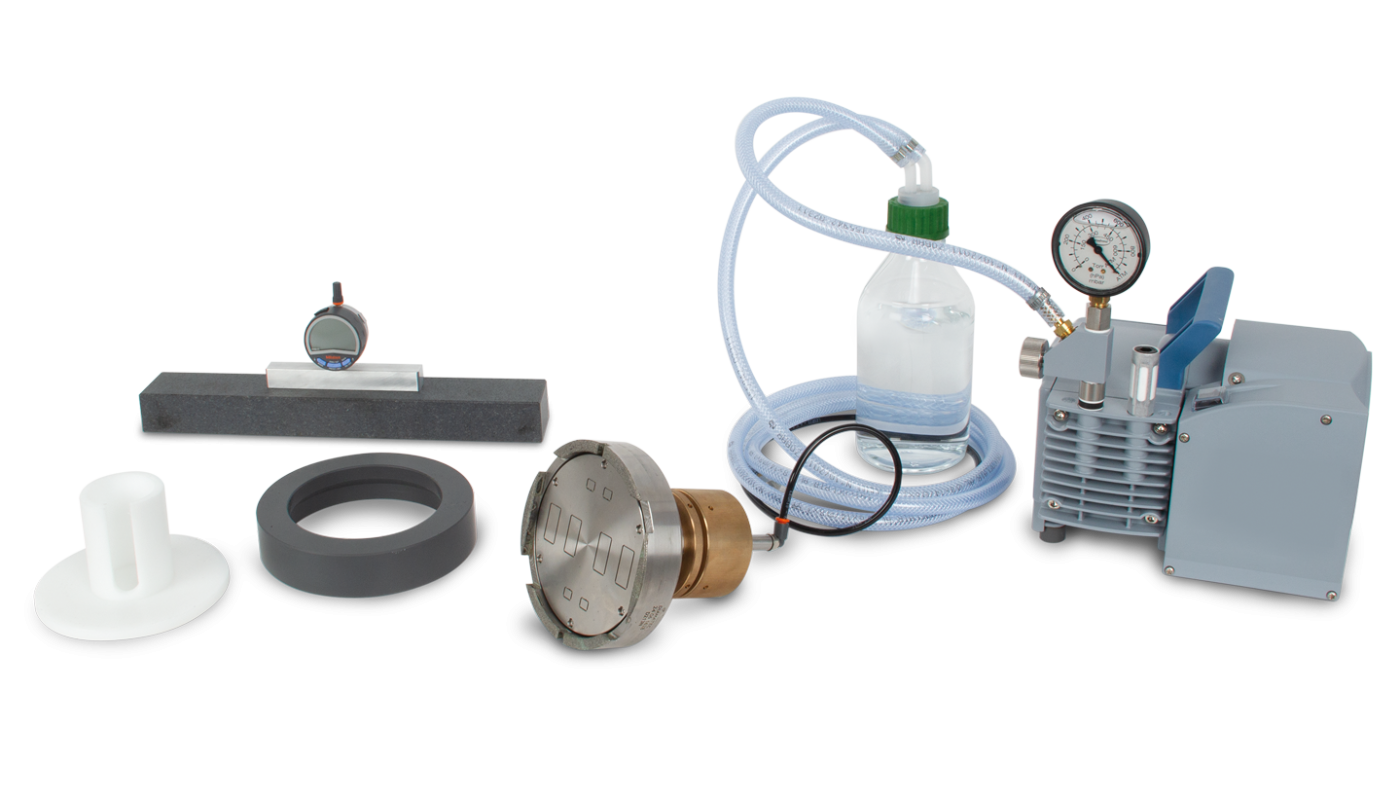

The set includes:

  • 1 micrometer ruler
  • 1 vacuum pump
  • 1 sample holder Ø 120 mm

Compatible thin blades: 6x 30×45 ou 6x 28×48 – 1x 120×45 + 2x 28×48 (or 2x 30×45) 1x 120×90 – 1x 60×80 + 2x 28×48 (or 2x30x45) – 2x 60×80 – 4x 24×27 – 4x Ø1 inch.

Technical data PE128

Accuracy of the adjustment ring

200 µm per rotation

Useful internal diameter
128 mm
Dimensions (H x Ø)
210 x 144 mm
6,27 kg
06 PE128 00
1 vacuum pump

For a quick and precise check of your lapping plates, with a direct reading of the measurement. Accuracy: 1 µm.

1 support for sample holder Ø 120 mm

Adjustable thickness of the thin blades and automatic parallelism.

M.M.8400 with PE128

The LAM PLAN M.M.8400 grinding machine combined with the PE128 mounting is the ideal equipment for making reference faces or for precise thicknessing.

1 micrometer gauge

For precise setting of the desired thickness of your thin slides.
