Our diamond abrasive slurries
BIO DIAMANT® NEOLAP® abrasive slurries, BIO DIAMANT® finishing slurries and Series 241 diamond slurries.

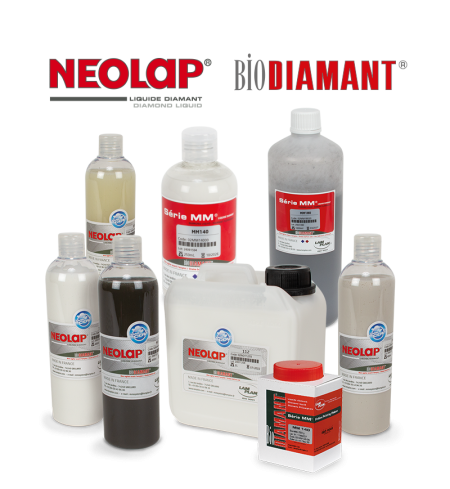

BIO DIAMANT® NEOLAP® abrasive slurries
All the experience of LAM PLAN in a diamond abrasive with incomparable performance. In direct line with our famous Bio DIAMANT® range, NEOLAP® diamond abrasive liquids go even further in terms of efficiency and ease of use.
High efficiency – Low consumption
The quality of the abrasive used, the strict calibration and concentration criteria and the use of new-generation water-based binders mean that we can achieve better roughness results while maintaining a high level of material removal.
The wettability of these diamond suspensions is specially designed and optimised for NEW LAM® M’M’ plates. The consistency of the binder allows the diamond liquid to spread quickly over the entire surface of the plate, producing an excellent abrasive film very quickly, for immediate cutting results.
Flatness
Contains specific additives to make it easier to mix the diamond liquid with the NEOFLUID lubricating fluid and improve heat dissipation from the plates during honing work.
Free of VOCs and CMRs
NEOLAP® Diamond Liquids are composed of a specific new-generation binder. This liquid is VOC-free (Volatile Organic Compounds) and CMR-free (Carcinogenic, Mutagenic, Reprotoxic).
User health and environmental impact
NEOLAP® diamond liquid is, of course, over 70% biodegradable in accordance with the criteria of our Bio DIAMANT® label. Non-toxic and non-harmful, they are neutral, so the user’s working conditions are respected.
Improved roughness
This new generation of diamond abrasives delivers improved roughness results while maintaining high stock removal rates.
Easy to clean
Clean with water for NEOLAP® 300 and 400 series or with a washing fountain for the 100 series.
Quality, guaranteed supply and total traceability
Compliance with REACH regulation
LAM PLAN has put in place all the necessary measures to guarantee the quality and availability of all its products over the long term. All the substances contained in our preparations comply with the specifications of the REACH regulation. To facilitate your administrative procedures, all the Safety Data Sheets (SDS) for our products comply with current legislation and can be downloaded from: fdsen.lamplan.com
Available in monocrystalline and polycrystalline
- 100 series emulsion – monocrystalline.
- 300 series water-based – monocrystalline.
- 400 series water-based – polycrystalline.
BIO DIAMANT® NEOLAP® slurries, key points
| Use | Top-of-the-range diamond abrasive specific for lapping polishing applications |
| Positioning | Ready-to-use, decantation-free, to be sprayed or dosed drop by drop. It is indicated for all your lapping work on NEW LAM® M’M’ plates and polishing work on our range of polishing cloths |
| Range | Monocrystalline, polycrystalline – grains from 1/4 to 45 µm |
| Bases | Water and emulsion |
| Packagings | 400 ml – 2 L |
| Lubricants | water base 712 or NEOFLUID |
| emulsion base 990-140 or NEOFLUID |

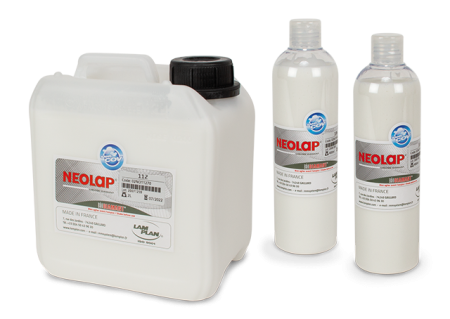

Diamond slurries BIO DIAMANT® NEOLAP® Series 100
Monocrystalline emulsion
Single face lapping polishing
VOC free, biodegradable.
Aqueous detergent.
| 400 ml | 2 L | ||
| Type |
µm | Ref. | Ref. |
| 197 | 0,25 | 02 NO197 60 | 02 NO197 70 |
| 195 | 0,75 | 02 NO195 60 | 02 NO195 70 |
| 101 | 1 | 02 NO101 60 | 02 NO101 70 |
| 102 | 2 | 02 NO102 60 | 02 NO102 70 |
| 103 | 3 | 02 NO103 60 | 02 NO103 70 |
| 106 | 6 | 02 NO106 60 | 02 NO106 70 |
| 109 | 9 | 02 NO109 60 | 02 NO109 70 |
| 112 | 12 | 02 NO112 60 | 02 NO112 70 |
| 115 | 15 | 02 NO115 60 | 02 NO115 70 |
| 125 | 25 | 02 NO125 60 | 02 NO125 70 |
| 145 | 45 | 02 NO145 60 | 02 NO145 70 |

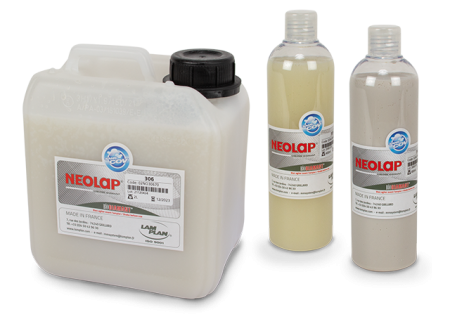

Diamond slurries BIO DIAMANT® NEOLAP® Series 300
Monocrystalline water base
Single face lapping polishing
VOC free, biodegradable.
Aqueous detergent.
| 400 ml | 2 L | ||
| Type |
µm | Ref. | Ref. |
| 397 | 0,25 | 02 NO397 60 | 02 NO397 70 |
| 395 | 0,75 | 02 NO395 60 | 02 NO395 70 |
| 301 | 1 | 02 NO301 60 | 02 NO301 70 |
| 302 | 2 | 02 NO302 60 | 02 NO302 70 |
| 303 | 3 | 02 NO303 60 | 02 NO303 70 |
| 306 | 6 | 02 NO306 60 | 02 NO306 70 |
| 309 | 9 | 02 NO309 60 | 02 NO309 70 |
| 312 | 12 | 02 NO312 60 | 02 NO312 70 |
| 315 | 15 | 02 NO315 60 | 02 NO315 70 |
| 325 | 25 | 02 NO325 60 | 02 NO325 70 |
| 345 | 45 | 02 NO345 60 | 02 NO345 70 |

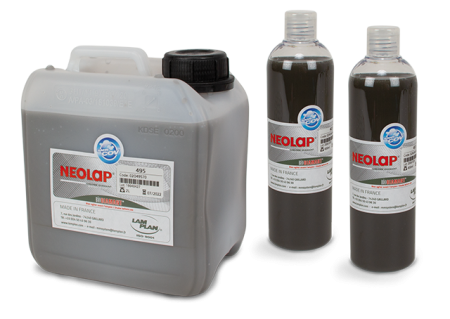

Diamond slurries BIO DIAMANT® NEOLAP® Series 400
Polycrystalline water base
Single face lapping polishing
VOC free, biodegradable.
Aqueous detergent.
| 400 ml | 2 L | ||
| Type |
µm | Ref. | Ref. |
| 497 | 0,25 | 02 NO497 60 | 02 NO497 70 |
| 495 | 0,75 | 02 NO495 60 | 02 NO495 70 |
| 401 | 1 | 02 NO401 60 | 02 NO401 70 |
| 402 | 2 | 02 NO402 60 | 02 NO402 70 |
| 403 | 3 | 02 NO403 60 | 02 NO403 70 |
| 406 | 6 | 02 NO406 60 | 02 NO406 70 |
| 409 | 9 | 02 NO409 60 | 02 NO409 70 |
| 412 | 12 | 02 NO412 60 | 02 NO412 70 |
| 415 | 15 | 02 NO415 60 | 02 NO415 70 |
| 425 | 25 | 02 NO425 60 | 02 NO425 70 |

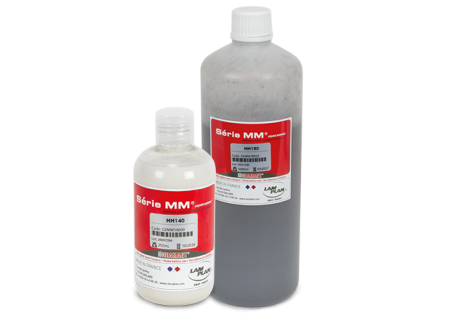

BIO DIAMANT® finishing fluids

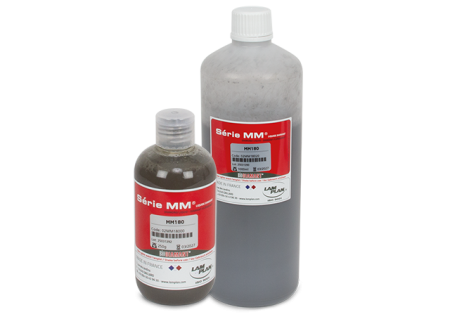

BIO DIAMANT® finishing fluids M.M.180
Polishing suspension for crystals and natural composite materials (mother-of-pearl).
Liquid specially formulated to provide superfinish chemical-mechanical polishing and high gloss on the surface of parts, without altering the structure. Oil-free composition, cleans with water or 742 detergent, guaranteeing clean, residue-free use.
| 250 ml | 1 L | ||
| Characteristics |
Type | Ref. | Ref. |
| Water-based diamond liquid | M.M.180 | 02 MM180 00 | 02 MM180 20 |

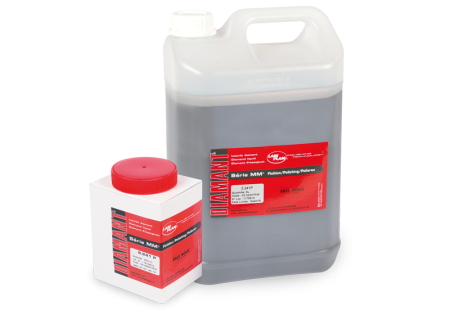

Diamond fluids Series 241
High-performance oil-based single-crystal and polycrystalline diamond liquids containing additives to limit diamond settling. Produce excellent results in terms of gloss and roughness on very hard materials such as ceramics and silicon carbides. As they contain no water, these products are particularly suitable for lapping/polishing water-sensitive materials.
Ready to use, they can be used with MM990-140 or MM950-140 fluid. Clean with Stanol or 742 detergent, leaving no greasy residue on parts.
