Micromotors

10 88230 00

Dedicated to the new V20 and V35 micromotors

Digital speed display, automatic torque control with overload alarm, 8-level load indicator, automatic detection of connected accessories and micromotor and controller self-diagnosis function. Variable speed controlled manually or by foot pedal (optional). Accepts older generation micromotors without speed feedback to the controller.

Accessories supplied: 2 handpiece holders.
Compatibility: all micromotors, except M.M.886, ultrasonic head and turboshaft engines.

• Type: for rotary and alternative engines
• Dimmer switch: manual on controller and pedal
• Direction of rotation: 2
• Voltage supply: AC 230 V – 50/60 Hz – 30 VA
• Voltage output: DC3-30 V (2 outputs)
• Dimensions W x H x D: 200 x100 x 180 mm
• Weight: 2,3 kg

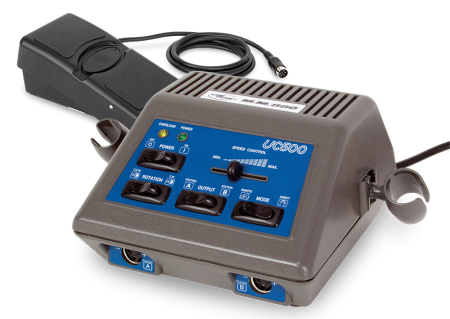

10 88030 00

Powerful controller for micromotors, suitable for intensive use in all types of deburring and polishing tasks. The M.M.880 is equipped with 2 outputs, which can be used alternatively. Variable speed controlled manually or by the supplied foot pedal controller. Dual direction of rotation with automatic overload protection. A torque management function guarantees a constant speed of rotation of the polishing tool, regardless of the pressure applied by the operator. Quick stop of the rotation when switched off.

Supplied accessories: foot pedal regulator, 2 handpiece holders.
Compatibility: all micromotors, except M.M.886, ultrasonic head and turbo engines.

• Type: for rotary and alternative engines
• Dimmer switch: manual on controller and pedal
• Direction of rotation: 2
• Voltage supply: AC 230 V – 50/60 Hz – 30 VA
• Voltage output: DC3-30 V (2 outputs)
• Dimensions W x H x D: 170 x 110 x 195 mm
• Weight: 2,1 kg

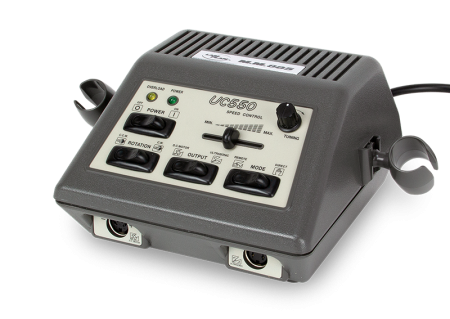

10 88530 00

Powerful controller for ultrasonic micromotors and handpieces, suitable for heavy duty use in all types of deburring and polishing tasks. An automatic feed system is incorporated to adjust the frequency to suit the ultrasonic tool being used. Variable speed for the micromotors, controlled manually or by foot pedal controller (optional). Dual direction of rotation with automatic overload protection. A torque management function guarantees a constant rotation speed of the polishing tool, regardless of the pressure applied by the operator. Quick stop of the rotation when switched off.

Accessories supplied: 2 handpiece holders.
Compatibility: all micromotors and ultrasonics except M.M.886 and turbo engines.

• Type: for rotary, alternative and ultrasonic engines
• Dimmer switch: manual on controller and pedal (in option)
• Direction of rotation: 2
• Voltage supply: AC 230 V – 50 Hz – 30 VA
• Voltage output: DC3-30 V 0,3 A – Ultrasonic AC 6-60 V 22,6 KHz
• Dimensions W x H x D: 170 x 110 x 195 mm
• Weight: 2,6 kg

10 88630 00

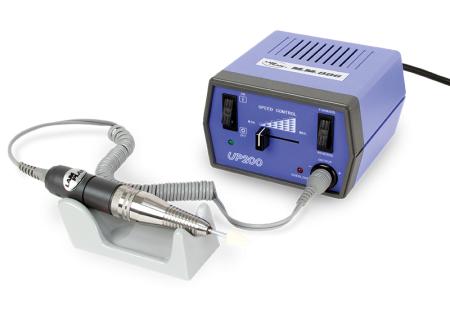

Complete set including 1 M.M.886 CONTROLLER and its compatible rotary MICROMOTOR. Variable speed controller with two directions of rotation and automatic protection in case of overload.a torque management function guarantees a constant speed of rotation of the polishing tool, regardless of the pressure applied by the operator.

Supplied accessories: spare fuse (UF-1A), other accessories see M.M.886 micromotor description.
Compatibility: M.M.886 micromotor only. Controller not compatible with foot pedal controller.

• Type: for M.M.886 rotary engine
• Dimmer switch: 3 000 to 20 000 tr/min.
• Direction of rotation: 2
• Voltage supply: AC 230 V – 50/60 Hz – 23 VA
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions W x H x D: 130 x 85 x 162 mm
• Weight: 1,5 kg



10 88630 20

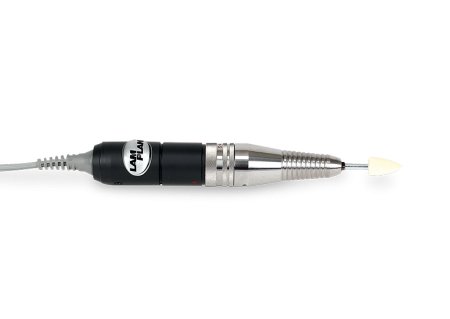

Handpiece specific to the M.M.886 CONTROLLER, monobloc micromotor type with stainless steel body. Lightweight and well-balanced, its variable speed of rotation from 3000 to 20,000 rpm is suitable for all common deburring and polishing situations. Supplied with 3 interchangeable quick-clamping jaws compatible with all types of rotary tooling.

Accessories supplied: 1 support for micromotor, tools for changing jaws and maintenance, 1 set of replacement carbons, 3 jaws Ø 2.35 – 3.00 – 3.175 mm.
Compatibility: only with M.M.886 controller.

• Type: Rotary micromotor for M.M.886
• Speed: 3 000 to 20 000 tr/min.
• Torque: n.c.
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 24 mm, L 128 mm
• Weight (without cable): 180 gr

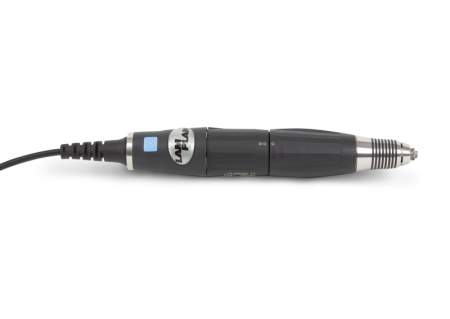

10 V2000 00

Hight torque

New head offers enhanced dust protection and greater precision for ultra-precise work.
On/off control. Speed feedback on controller.

Accessories supplied: mors Ø 2,35 et 3,00 mm.
Compatibility: M.M.882 controller (M.M.880 and M.M.885 with adapter 10 88002 00).

• Type: Rotary micromotor
• Speed: 1 000 to 20 000 tr/min.
• Torque: 5,4 Ncm
• Compatible jaws: Ø 2,35, 3,00 and 3,175 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 28 mm, L 157 mm
• Weight (without cable): 220 gr

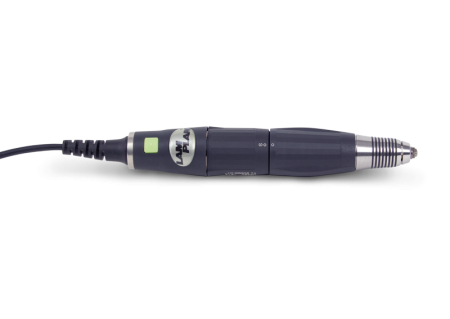

10 V3500 00

Hight speed

New head offers enhanced dust protection and greater precision for ultra-precise work.
On/off control. Speed feedback on controller.

Accessories supplied: mors Ø 2,35 et 3,00 mm.
Compatibility: M.M.882 controller (M.M.880 and M.M.885 with adapter 10 88002 00).

• Type: Rotary micromotor
• Speed: 1 000 to 35 000 tr/min.
• Torque: 6,4 Ncm
• Compatible jaws: Ø 2,35, 3,00 and 3,175 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 28 mm, L 157 mm
• Weight (without cable): 220 gr

10 88040 00

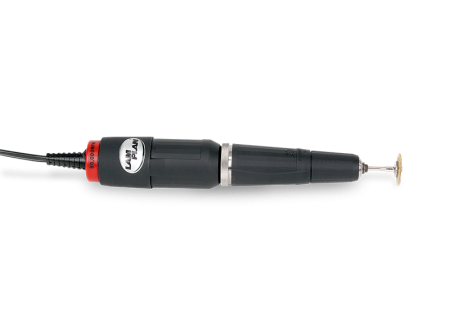

Rotary motion handpiece with standard head. Lightweight and well balanced, its variable speed of rotation from 3000 to 30,000 rpm is suitable for deburring and polishing situations.

Accessories supplied: 1 support for micromotor, tools for changing jaws and maintenance, 1 set of replacement carbons and 2 interchangeable quick-clamping jaws compatible with all types of rotary tools Ø 2.35 – 3.00 mm.
Compatibility: M.M.880, M.M.885 and M.M.882 controllers.

• Type: Rotary micromotor
• Speed: 3 000 to 30 000 tr/min.
• Torque: 6,5 Ncm
• Compatible jaws: Ø 3,175 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 31,6 mm, L 170 mm
• Weight (without cable): 295 gr

10 88041 00

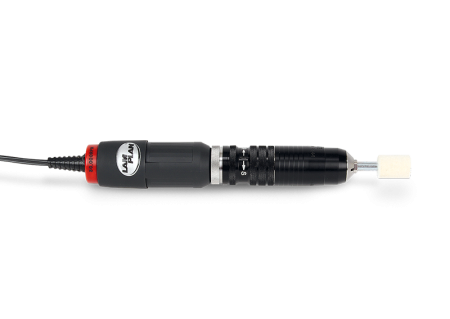

Rotary handpiece with reinforced head, modular micromotor type. For difficult milling operations with high vibration and pressure loads.

Accessories supplied: 1 micromotor support, tools for changing jaws and maintenance, 1 set of replacement carbons and 2 interchangeable quick-change jaws Ø 6.00 – 3.00 mm.
Compatibility: M.M.880, M.M.885 and M.M.882 controllers.

• Type: Rotary micromotor
• Speed: 3 000 to 30 000 tr/min.
• Torque: 6,5 Ncm
• Compatible jaws: Ø 3,175 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 31,6 mm, L 175 mm
• Weight (without cable): 360 gr

10 88042 00

Lightweight, one-piece micromotor type handpiece. For finishing operations, polishing, deburring, engraving, grinding, limiting operator fatigue.

Accessories supplied: 1 support for micromotor, tools for changing jaws and maintenance, 1 set of replacement carbons and 2 interchangeable quick-clamping jaws Ø 2.35 – 3.00 mm.
Compatibility: M.M.880, M.M.885 and M.M.882 controllers.

• Type: Rotary micromotor
• Speed: 2 000 to 20 000 tr/min.
• Torque: 6,5 Ncm
• Compatible jaws: Ø 3,175 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 27,5 mm, L 145 mm
• Weight (without cable): 200 gr

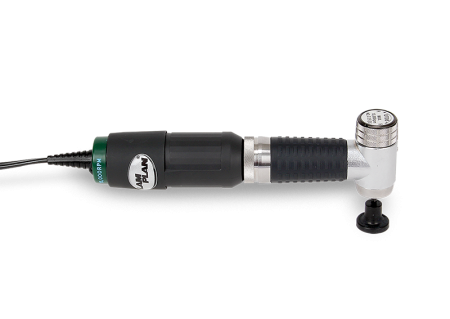

10 88046 00

Handpiece, modular micromotor type with reinforced head with 90° angle transmission.
For finishing operations, generally used with polishing discs.

Accessories supplied: 1 support for micromotor, tools for changing jaws and maintenance, 1 set of replacement carbons and 2 interchangeable quick-clamping jaws Ø 2.35 – 3.00 mm
Compatibility: M.M.880, M.M.885 and M.M.882 controllers.

• Type: Rotary micromotor
• Speed: 1 500 to 15 000 tr/min.
• Torque: 8,8 Ncm
• Compatible jaws: Ø 3,175 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 31,6 mm, 45 x 160,5 mm
• Weight: (without cable) 380 gr



10 88047 00

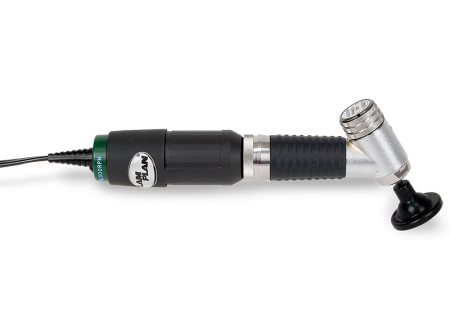

Handpiece, micromotor type with reinforced head with 120° angle transmission, for finishing operations, generally used with polishing discs.

Accessories supplied: 1 micromotor holder, tool for changing jaws and maintenance, 1 set of replacement brushes, 2 interchangeable quick-release jaws Ø 2.35 – 3.00 mm.
Compatibility: M.M.880, M.M.885 and M.M.882 controllers.

• Type: Rotary micromotor
• Speed: 1 500 to 15 000 tr/min.
• Torque: 8,8 Ncm
• Compatible jaws: Ø 3,175 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 31,6 mm, 47 x 169 mm
• Weight (without cable): 385 gr

10 88630 20

Handpiece specific to the M.M.886 CONTROLLER, monobloc micromotor type with stainless steel body. Lightweight and well-balanced, its variable speed of rotation from 3000 to 20,000 rpm is suitable for all common deburring and polishing situations. Supplied with 3 interchangeable quick-clamping jaws compatible with all types of rotary tooling.

Accessories supplied: 1 support for micromotor, tools for changing jaws and maintenance, 1 set of replacement carbons, 3 jaws Ø 2.35 – 3.00 – 3.175 mm.
Compatibility: only with M.M.886 controller.

• Type: Rotary micromotor for M.M.886
• Speed: 3 000 to 20 000 tr/min.
• Torque: n.c.
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 24 mm, L 128 mm
• Weight (without cable): 180 gr



10 88045 00

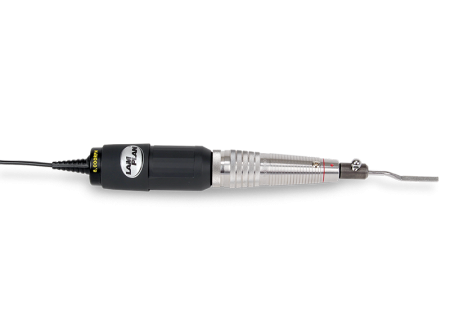

Handpiece, modular micromotor type with straight head with angular movement (sweeping).
For finishing operations, generally used with diamond stones and files.

Accessories supplied: 1 support for micromotor, tools for changing jaws and maintenance, 1 set of replacement carbons and 1 jaw Ø 2.00 to 4.7 mm.
Compatibility: M.M.880, M.M.885 and M.M882 controllers.

• Type: Scanning alternating micromotor
• Speed: 800 to 8 000 osc./min.
• Torque: 6,5 Ncm
• Compatible jaws: Ø 1,6 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions: Ø max. 31,6 mm, 182 mm
• Weight (without cable): 316 gr

10 88049 00

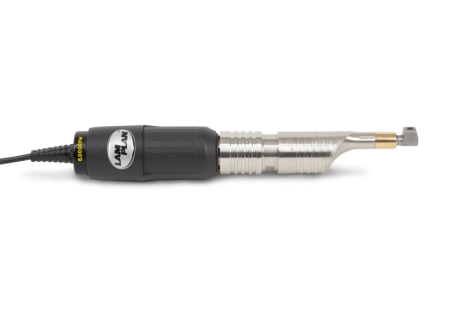

This polishing/liming micromotor is the natural choice for working in tight, confined spaces. Its compact dimensions and easy handling make it excellent for polishing and finishing applications on small, hard-to-reach surfaces.

Accessories supplied: jaws Ø 3.6 mm.
Compatibility: M.M.880, M.M.885 and M.M.882 controllers.
Weight of inserted tool: max. 10 g, recommended 1 to 10 g.

• Type: Micromoteur linéaire
• Speed: 800 to 8 000 osc./min.
• Torque: 9,8 Ncm
• Course: 1,0 mm
• Voltage output: DC3-30 V – 0,2 to 0,4 A
• Dimensions W x H xD: Ø max. 31,6 mm L 200 mm
• Weight (without cable): 340 gr

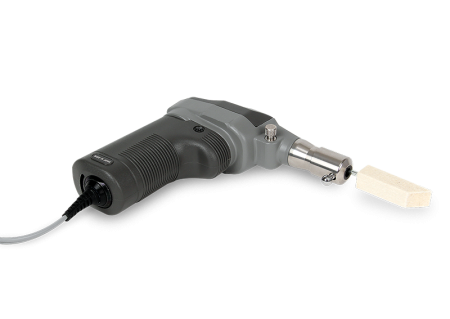

10 88043 00

One-piece motor type handpiece with longitudinal pistol grip for finishing operations, generally used with wood or felt lapidaries.

Accessories supplied: 1 support for micromotor, tools for changing jaws and maintenance, 1 set of replacement carbons and 1 jaw Ø 2.00 to 6.35 mm.
Compatibility: M.M.880, M.M.885 and M.M882 controllers.

• Type: Linear alternating micromotor
• Speed: 700 to 7 000 osc./min
• Torque: n.c.
• Course: 0 to 6 mm
• Voltage output: DC3-30 V – 0,2 à 0,4 A
• Dimensions W x H x D: 40 x 128 x 140 mm
• Weight (without cable): 675 gr

10 88540 00

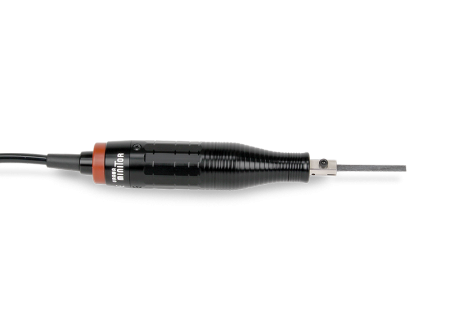

Handpiece, one-piece ultrasonic micromotor type. Compact and lightweight, ergonomically designed to improve efficiency. Applications include finishing of plastic moulds, die castings, ceramics, non-ferrous and precious metals. Ideal for deburring, polishing and removing EDM burrs.

Accessories supplied: 1 micromotor support, tools for changing jaws and maintenance, 1 diamond file, 1 interchangeable Ø 3 mm quick-clamping jaws and 2 collets, thickness 0.5 and 1 mm.
Compatibility: M.M.885 controller

• Type: Ultrasonic micromotor
• Frequency: 800 to 8 000 osc./min.
• Course: 45 µm
• Voltage: AC 6-60 V 22,6 KHz
• Dimensions: Ø max. 29 mm, 140 mm
• Weight (without cable): 196 gr

10 88840 00

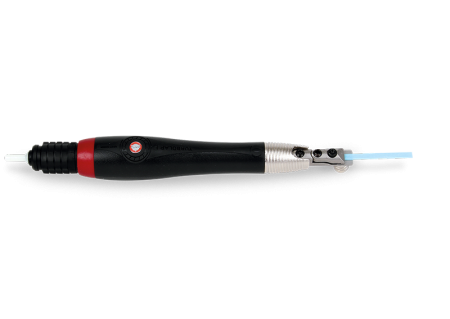

Turbomotor providing high torque and speed. With a stroke of 0.7 mm and a movement frequency of 350 strokes/sec. Mainly made of lightweight composite materials, this turbo motor allows easy working for a long time without fatigue or overheating. Integrated on/off control ring.

Supplied accessories: 1 x 1.50 m hose with clamps, 1 x hose holder, 1 x key, 1 x ceramic stone and 1 x multi-purpose jaw for Ø 3 and 3 x 10 mm max.

• Type: Linear alternating micromotor
• Frequency: 0 à 22 000 coups/min.
• Pressure: 6 bars
• Course: 0,7 mm
• Connector: PT 1/4
• Air consumption: 46 NL/min.
• Power supply: Compressor 60 COM00 00 or compressed air network
• 6 Bar flow rate higher than 70 NL/min.
• Dimensions: Ø max. 28 mm, 218 mm
• Weight: 180 gr

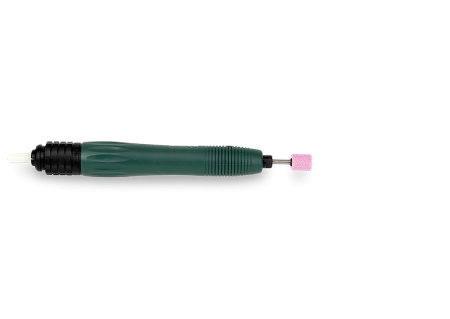

10 88830 00

Turbomotor is made of composite materials and is particularly thin and light, allowing easy working for a long time without fatigue or overheating. Integrated on/off control ring.

Supplied accessories: 1 x 1.50 m hose with clamps, 1 x hose holder, tools, 1 x Ø 10 mm grinding wheel and 1 x Ø 3 mm jaw.

• Type: Rotary micromotor
• Speed: 65 000 tr/min.
• Pressure: 6 bars
• Course: 0,7 mm
• Connection: PT 1/4
• Air consumption: 120 NL/min.
• Power supply: Compressed air network 6 Bar flow rate higher than 150 NL/min.
• Dimensions: Ø max. 22,50mm, 218 mm
• Weight: 78 gr
