Catégorie: Lapping and polishing

NEW

Lapping & polishing machine M.M.9480

Lapping & polishing machine for intensive production of parts: Ø 5 to 160 mm MM 8380 S Version S with integrated pneumatic pressure system. Dosing unit System integrated to the machine driving by the control screen. Production machines This Ø 480 mm lapping machine has all the technical solutions of the large capacity models. Plate Ø 480 mm Plate rotation speed from 15 to 90 rpm Inner ring Ø 182 mm Weight (kg) 300 See the full technical sheet INTRODUCTION M.M.9480 S version The M.M.9480 S is the new 9000 series small diameter flat lapping machine.This...

Continue reading

Dosing pumps

[social] Dosing units, mixing distributors and nozzles For AQUA LAM®, M.M. & diamond liquids Automatic distribution system The automatic distribution system ensures precise and regular distribution of products. It’s the solution for abrasive film control and lubrication. The yield of removed material and temperature control depend directly on the quality and constancy of the abrasive film. The various adjustments, distribution intervals, spraying times, head positioning, enable homogeneous and reproduceable polishing results, as well as economising on consumables. The 719 and MM 809B...

Continue reading

NEW

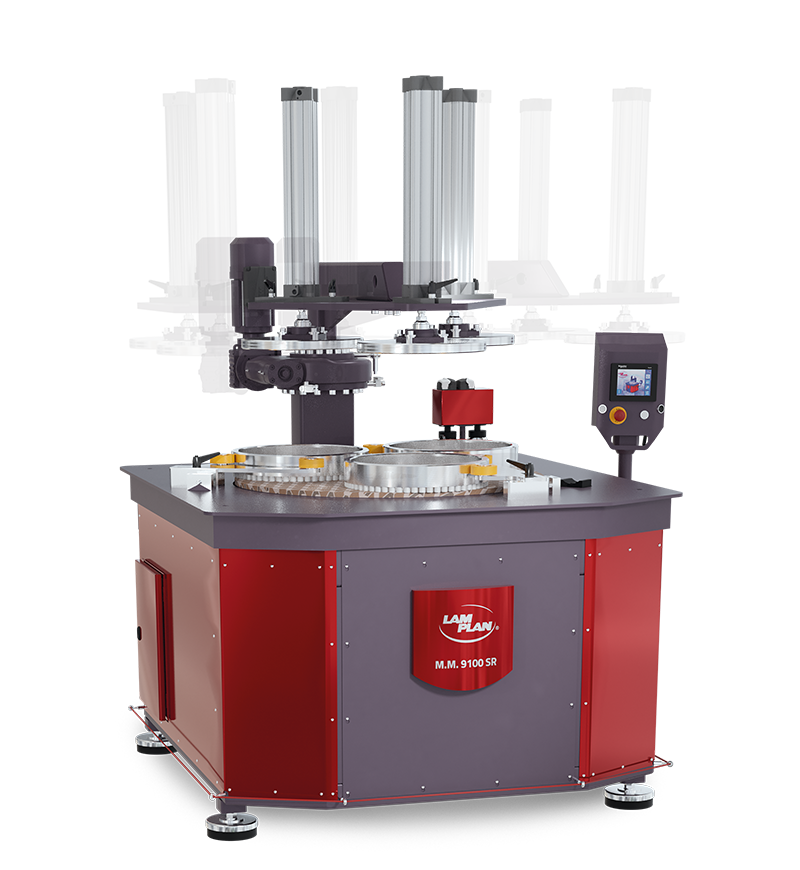

Lapping & polishing machine M.M.9100

Lapping & polishing machine for intensive production of parts: Ø10 to 350 mm M.M.9100 E version M.M.9100 S version M.M.9100 SR version M.M.9100 EC version Plate Ø 1 000 mm Plate rotation speed from 15 to 50 rpm Inner ring Ø 406 mm Weight (kg) 1000 See the full technical sheets INTRODUCTION M.M.9100 E, S, SR and EC version Lapping techniques with heavy loads and intensive use require a suitably durable material. This is offered by the LAM PLAN mid and large diameter range of machines. The rigidity of their structures and the gear...

Continue reading

Accessories for lapping and polishing machines

[social] Accessories for lapping and polishing machines For the range of lapping and polishing machines MESUREO: stock removal measurement 10 84003 00 For machine M.M.8400 System permitting to obtain a flat surface within a micron, combined with a high quality parallelism between the lapped face and a reference. This device is constituted of a perfectly flat pressure disc translating on a vertical axis. Therefore, it assures a support on the opposite face of the surface to be lapped. The guidance of this support plate is realised by a high quality linear ball bearings. Therefore,...

Continue reading

Specific carriers

[social] Specific carriers Carriers for single and double-side machines Carriers & skids for single side machines Easily usinable plastic disc holding your parts during the lapping process. 3mm thick. On demand, PMMA carriers are delivered with honeycomb cells according to the dimension of your parts Carriers series 884 for single side machines Easily usinable plastic disc holding your parts during the lapping process. 3mm thick. On demand, PMMA carriers are delivered with honeycomb cells according to the dimension fop your parts.  Designation Qty. Ø in mm Ref.  PVC...

Continue reading

Accessories

Our accessories LAM PLAN offers a wide range of accessories for lapping and polishing machines, dispensing dispensers, FAS®, FIXING®, FIXPAD®, AUTOPLAN, DIABLOC, double-sided satellites and all accessories for control, cleaning, maintenance and protection. Machine accessories For the range of lapping and polishing machines Dosing and mixing distributors For AQUA LAM® M.M. & diamond liquids Specific carriers Carriers for single and double-side machines Fixing plates FAS®, FIXING® and FIXPAD® systems Plate maintenance and integrated...

Continue reading

AUTOPLAN system

[social] AUTOPLAN system It enables effective management of plate flatness. Dedicated to machines 9000 series The AUTOPLAN system enables effective management of plate flatness and grooving in order to create structures which will modify its properties. The principle lies in plate machining by the movement of a cutting tool. AUTOPLAN positions and dismounts in a few minutes, due to the dedicated fixing points integrated in our machines. The AUTOPLAN automatic system can currently be integrated with LAM PLAN machines up to the M.M.9100 model. It is installed on dedicated points on the...

Continue reading

TOUCHLAM® discs

[social] TOUCHLAM® polishing cloths The TOUCHLAM® range is dedicated to aspect polishing and for all other kinds of accurate high quality polishing. LAM PLAN proposes a new generation of TOUCHLAM® polishing cloths. High technological products realised from exclusive materials, these cloths are intended to satisfy high precision demand concerning surfaces and geometry. The TOUCHLAM® range is dedicated to aspect polishing and for all other kinds of accurate high quality polishing. Oriented towards industrial applications and research, these cloths integrate new materials and treatments...

Continue reading

DIABLOC system

[social] Plate maintenance and integrated reconditioning and grooving system DIABLOC system DIABLOC and refills Plate maintenance and integrated reconditioning and grooving system The reconditioning of composite plates can be carried out in different ways. The DIABLOC is a self-adhesive disc which has a series of diamond pellets. It is stuck onto a stable and lapped aluminium support. It allows the reconditioning of NEW LAM® M’M’, EVOLAM ULTIMATE and 2000 series plates. It corrects distortion and surface faults (glazing, scratching) of your plates. The new VIOLET and BLACK DIABLOCS are...

Continue reading

DIALAM discs & ABRALOC rings

[social] DIALAM diamond discs& ABRABLOC dressing rings The DIALAM supports are diamond composite supports with a high cutting capacity & ABRABLOC dressing rings are intended for the dressing the DIALAM disc. DIALAM diamond discs The DIALAM supports are diamond composite supports with a high cutting capacity. Usable on single and double-side machines, they are recommended for pre-polishing processes requiring a high level of stock removal on all types of materials. The DIALAM discs are particularly efficient for the stock removal on very hard materials as sapphires and ceramics. ...

Continue reading

Diamond abrasive films

[social] Abrasive films High concentration abrasive films: diamond, & alumina. Alumina abrasive films High concentration abrasive films. Available in different grains from 0.3 µm to 40 µm, they generate excellent flatness and finishing results. The uniformity of the abrasive layer ensures exceptional regularity of the polishing process and prolonged durability of the disc. Easy to use, high stock removal and polishing quality enables you to significantly reduce your sample polishing time. They can be used with all material types. Recommended lubricants: FLUIDE 712 water-based...

Continue reading

Lapping rods

[social] Manual lapping rods Lapping rods M.M.®, shapes As A, B, C et Lapidaries Lapping rods M.M.® Immediately shape your rods in all form, from patented M.M.® preliminary shape containing no abrasive. Applications For internal and external lapping, and super finishing of spherical, conical and cylindrical parts and many other shapes. The solution LAM PLAN offers an original, functional and adapted solution; it responds to the requirements of surface conditions difficult to attain with tools or grinding wheels. LAM PLAN delivers its rods in preliminary shape condition. The user finalises...

Continue reading

Machine à roder et à polir MM 8400

Lapping & polishing

LAPPING & POLISHING Many applications, particularly in the fields of: Valve tightness (chemistry, petrochemistry, nuclear, etc.) Industrial maintenance Servicing of parts and equipment Valves and fittings… Lapping intervenes for the finish of your mechanical components or the preparation of a polishing operation. Lapping allows you to obtain a surface condition with a defined roughness and/or inherent flatness. This operation can take place during the production of parts or within the maintenance operations (example : mechanical seals for valves). Equipment LAPPING & POLISHING LAM...

Continue reading

Manual lapping plates

[social] Manual lapping plates LAMBLOCK CAMEO®, BI-LAMBLOCK, TRI-BLOCS & NEW LAM® M’M’ and FAS® systems Manual lapping & polishing plates Extend the usage of your sealing parts. LAMBLOCK are simple, inexpensive and easy to use tools that will allow preventive maintenance of sealing parts on industrial sites at a lower cost. Your maintenance department carries out manual lapping/polishing operations to recondition worn sealing parts BI-LAMBLOCK 09 04LB9 00 2 Operations: Lapping and Polishing for the servicing of sealing part up to Ø 40 mm.Ø 300 mm 1 ergonomic...

Continue reading

Lapping & polishing machine M.M.2380

Lapping & polishing machine double-side production for parts: Ø 5 to 30 mm Command interface 10,5“ touch panel Plate Ø 380 mm either 5 satellites of useful capacity Ø 125 mm Plate Capacity Ø 380 mm ext.Ø 153 mm int. Useful capacity 5 satellites Ø 125 mm Plate rotational speed 0 to 160 rpm Bidirectional Weight 650 kg See the full technical sheet INTRODUCTION M.M.2380 Developed on well-known and proven technological bases, this equipment will perfectly respond to your needs in terms of double-side lapping or polishing of parts with a diameter between 5 and 30 mm....

Continue reading

Plates & cooling systems

[social] Lapping plates Cast iron AQUA LAM®, NEW LAM® M’M’, EVOLAM, 2000 Series & cooling system. AQUA LAM® cast iron plates As a manufacturer and designer of cast iron plates and rings, we select specific high quality cast iron for optimum and long lasting results. AQUA LAM® plates and rings are suitable for all lapping machines of any brand or size. Available from stock or made to order within the shortest deadlines, AQUA LAM® cast iron plates and rings offer exceptional value for money. Lapping cast iron plates with radial grooving by default, available on request in...

Continue reading

Lapping & polishing machine MASTERLAM® Evolution

Polishing machine small series and double-side prototyping for parts: Ø 5 to 20 mm 5,7″ touch screen contol panel Allows you to manage all the parameters of the machine, of the doser (optional) and to save the programs. Motorised uper plate Double direction of rotation. Plate Capacity Ø 250 mm ext.Ø 130 mm int. Useful capacity 7 satellites Ø 65 mm Plates rotational speed 20-150 rpm Bidirectional Weight 95 kg See the full technical sheet INTRODUCTION MASTERLAM® Evolution In order to answer to double-side polishing issues in small series or development phase,...

Continue reading
